IO 12 Expander Box - 12 Channel CAN Bus Expansion Module with Plug & Pins | Automotive & Industrial Control Systems | Perfect for Vehicle ECU Programming & CAN Network Expansion

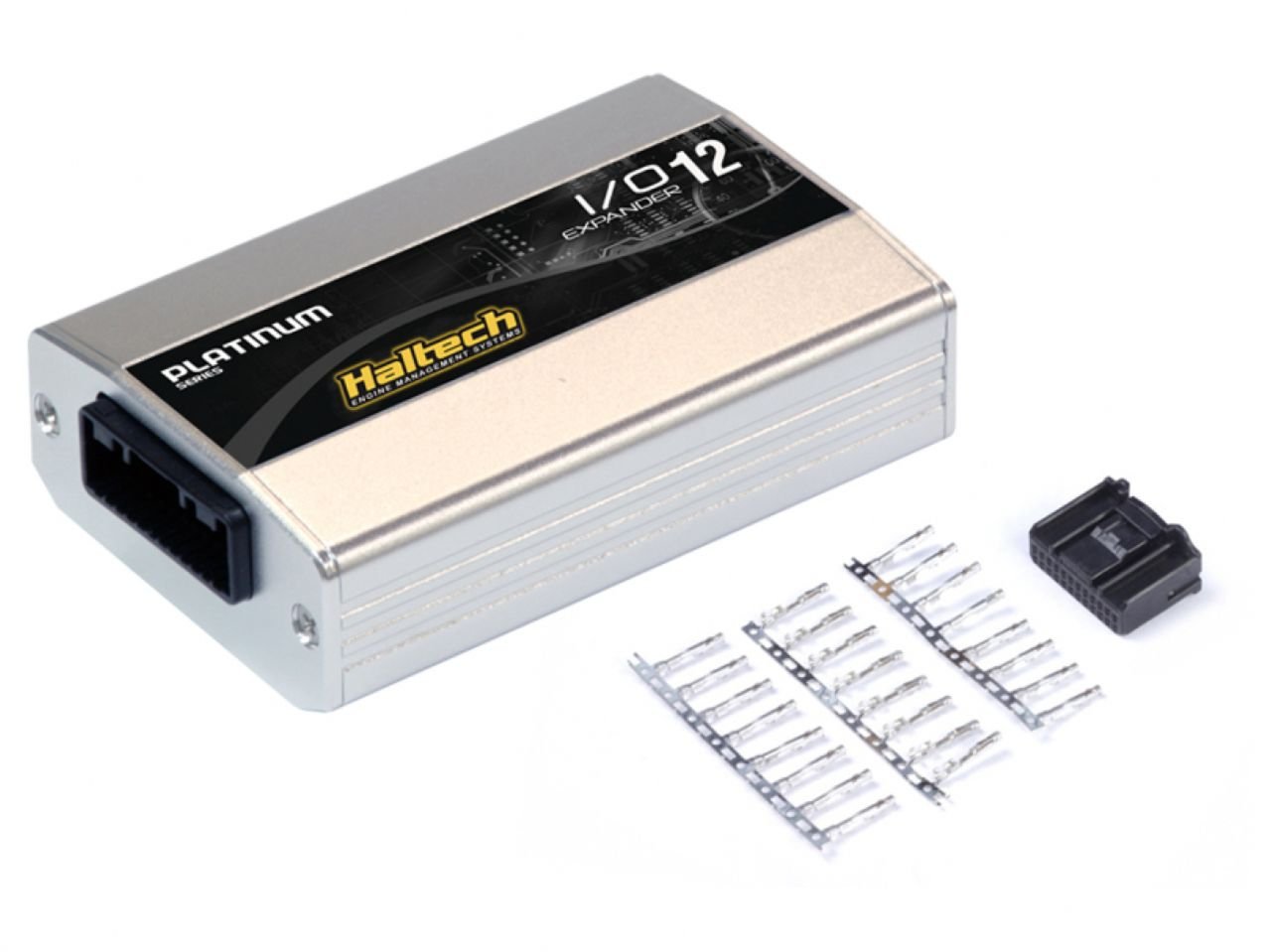

IO 12 Expander Box ACAN Based 12 ChannelIncl Plug & PinsIncl CAN CableThe Haltech I/O Expander 12 allows the user the ability toincrease the functionality of their Haltech ECU byusing the Haltech CAN system which is fitted to allPlatinum Series ECUs, the I/O Expander 12 instantly makesavailable 12 additional user configurable inputs and outputs.Simply plug in the CAN cable and start using yourextra I/OFeatures 4 x AVI Analogue Voltage Inputs (0-5V)*1 4 x DPI Digital Pulsed Inputs ( 0-5V Max Freq300Hz) *1 4 x DPO Digital Pulsed Outputs (5V / 12V Pull ups Max 1A) *1 Broadcast rate of 20mS to the Haltech ECU for eachchannel. User definable Safe State for each output in case of loss ofcommunications or error. Switchable pull up resistors on AVI channels for usewith temperature sensors. Power and Status LEDs Powered by CAN bus. External power only required ifDPOs are to be used. Multiple I/O Expander Boxes can be used on certain HaltechECUsECU Suitability Sprint 500 (maximum 1 box*3) Sprint RE (maximum 1 box*3) Sport 1000/2000 (maximum 1 box*3) Sport GM (maximum 1 box*3) Pro Harness*4 (maximum 1 box*3) Pro Plug-in ECUs*4 (maximum 2 boxes*2)Power RequirementsSource 8.6 to 16.5 Volts DCConsumption 50mA 12Volts DCPhysical Dimensions Length 98mm Width 64mm Height 28mmWeight ECU 125g (0.28 lb) Harness 630g (1.39 lb)Haltech I/O Expander 12Kit Includes Haltech I/O Expander 12 CAN direct connection cable(600mm)*2*1. Functions available may vary depending on ECUused. Full function listing on pages 2-4 of the SpecificationSheet.*2. Optional CAN Hub required to be purchased ifmore than one device is to be fitted to the HaltechCAN Bus. Haltech Part # HT059990.*3. Supports Box A Only.*4. Supported in 1.10 and above firmware only.
